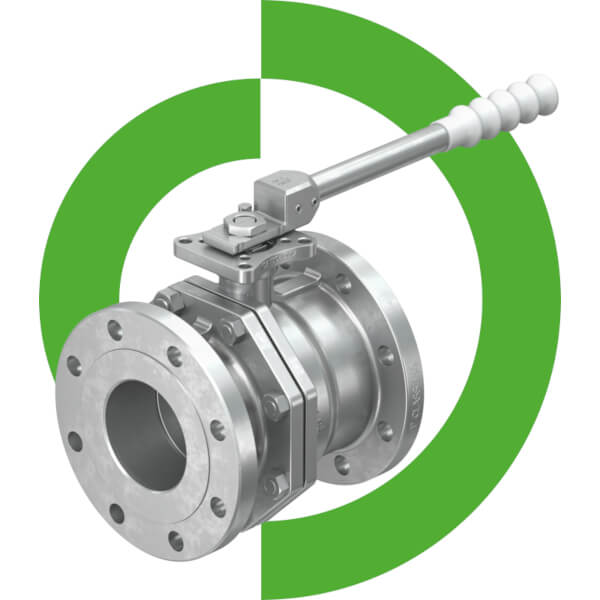

Manual Flanged
2-piece Ball Valves

HEROSE UK’s flanged ball valves are designed for secure, high-performance flow control in demanding industrial environments.

With ANSI 150 / 300 and DIN EN PN40 flange ratings, these two-piece valves deliver durability, efficiency, and long service life across a wide range of process applications.

Clean
Power

Modules


Cryogenic Quarter
Turn Valves

Cryogenic & Gas
Delivery Valves

Liquid Cylinder +
Micro-bulk

Insulation


Industrial
Valves

Gauges


Generant
Valves

HEROSE UK’s range of Ball Valves have been specifically designed to meet demanding operational requirements, including that of high purity applications. The product ranges meet ASME, DIN, and JIS standards, for the valve package that includes 1pc, 2pc, 3pc body, multiple-port & V-ported valve designs with standard pressure ratings 1000PSI, 2000PSI, and 3000PSI, to high pressure 6,000 and 10,000PSI. Products for NACE MR-01-75, Atex 2014/34/EU, TRD100, low emission ISO15848-1, and fire-safe API 607 are available as standard.

Materials: Fully controlled and available with EN10204 3.1 certificates.

Direct Mounting Pad: Improves control accuracy, and facilitates maintenance by providing a direct and robust attachment point for mounting actuators onto the valve body.

Application: Our valves are suitable for Automotive, Gas & Oil, Chemical, Water & Wastewater, Mining, Minerals & Metals, Marine, Pulp & Paper, Food & beverage, and Pharmaceutical industries.

Direct Mounting Pad Series V111AS / V111PN

2 Piece Ball Valve Flanged End

Size1/2”-6”
Pressure Rating150 LBS / 300 LBS
End ConnectionsFlanged End ASME B16.5
Mounting PadISO 5211 Direct
MaterialCF8M / WCB

Extension & Handle Options

Details & Benefits

Every aspect of the V111 flanged ball valve has been engineered for safety, strength, and ease of operation. From the solid, mirror-polished ball and robust two-piece body to advanced seat materials and ISO 5211 direct mounting, each component is designed to deliver reliable performance and long service life in demanding industrial environments.

Body

  • Investment Casting

  • Standard materials: CF8M, WCB

  • Special materials: Hastelloy, Duplex Steel, Super duplex steel

  • Encapsulated body bolt design(DN08~DN50).

Seat/Seal

  • Solid Ball Full bore

  • The ball’s surface is mirror polished, Ra<0.2μm, which reduces friction with the ball seats and related torque.

  • Ball with a pressure relief hole to balance the pressure inside the valve body.

  • Live loaded stem packing, increase the service life

Ball Seat

  • PTFE, RPTFE, TFM1600 available

  • Bi-directional sealing

  • Pressure relief hole to balance the pressure inside the valve body.

Stem Packing

  • The Belleville washers automatically compensate with a force on the stem packing, should the packing be worn during long-life operation.

Marking

  • The standard is marked with material, size, pressure, heat number on the body.

  • Customer logo upon request.

Stem

  • Blow-out proof stem

  • Anti-static device

Handle Nut/Bolt

  • When the pipeline is under pressure, the handle still can be disassembled safely.

Thrust Washer

  • Prevent friction between the stem and the valve body

O-Ring

  • Guide the stem

  • Prevent fugitive leakage

Connections

  • Flanged 150 /300 according to ASME B16.5 and PN40 according to DIN EN 1092

Seat

  • Seat material options and the ball Ra<0.2μm finish increases operating life.

Lock Washer

  • Prevent the stem nut from loosening

Positioning

  • Below 2″: stopper, above 2″: stopper pin

Platform

  • ISO 5211 direct mounting pad

Length

  • Face to face conforms to ASME B16.10

Inspection

  • API 598, EN 12266-1

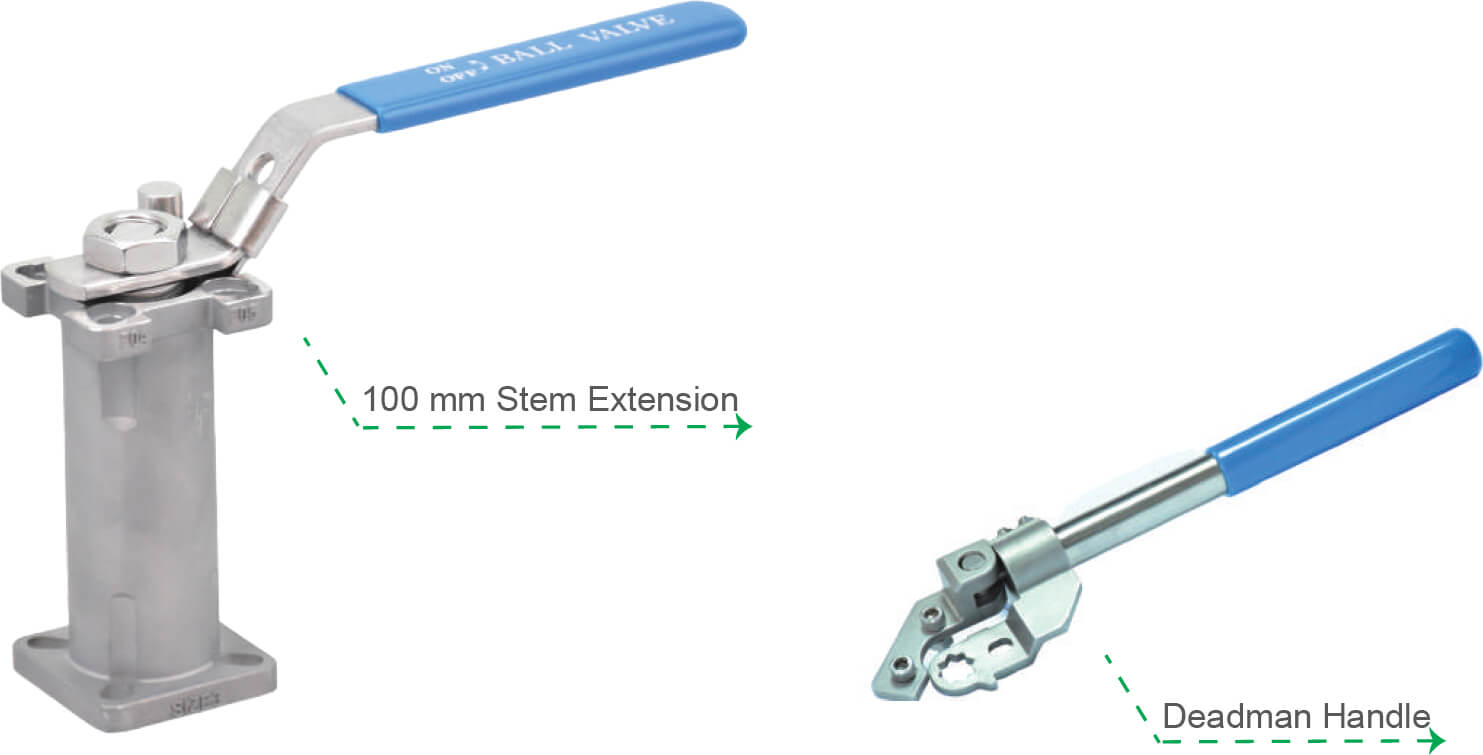

Extension & Handles

  • 100 mm stem extension

  • Spring return deadman handle ( up to 2”)

Talk to Our Manual Flanged 2-piece Ball Valves Expert

Whether you’re specifying valves for a new process line or upgrading existing equipment, Wayne is here to help. With years of experience in industrial and hygienic valve solutions, he can guide you to the right product for your application. Get in touch today for expert advice, technical support, and a competitive quote.

T: +44 (0) 7901 127 265
E: wayne.lyons@herose.co.uk

T: +44 (0) 7901 127 265
E: wayne.lyons@herose.co.uk

Wayne Lyons
Industrial Valve Sales Manager

Features

  • The valve has a full port design, providing unrestricted flow and minimizing pressure drop. It conforms to ANSI 150LBS and 300LBS standards, ensuring compatibility with the corresponding flange ratings.

  • The valve is a two-piece ball valve with flanged ends, offering ease of maintenance and replacement of internal components.

  • The valve body is available in CF8M, CF8, and WCB materials, providing options for corrosion resistance and durability based on the specific application requirements.

  • The valve conforms to the ASME B16.10 face-to-face dimensions, ensuring proper alignment and compatibility with other components in the pipeline system.

  • The valve is equipped with an ISO 5211 Direct Mounting Pad, facilitating direct mounting of actuators without the need for additional components.

  • The valve undergoes testing according to the API 598 standard, ensuring reliable performance and compliance with industry standards for pressure and leakage testing.

  • The valve features a blow-out proof stem design, enhancing safety by preventing stem ejection under high-pressure conditions.

  • The valve is equipped with a solid ball, ensuring durability and reliable sealing.

  • The valve offers the option of a locking device for added security and a hollow ball design for specific applications where reduced weight or flow control features are required.

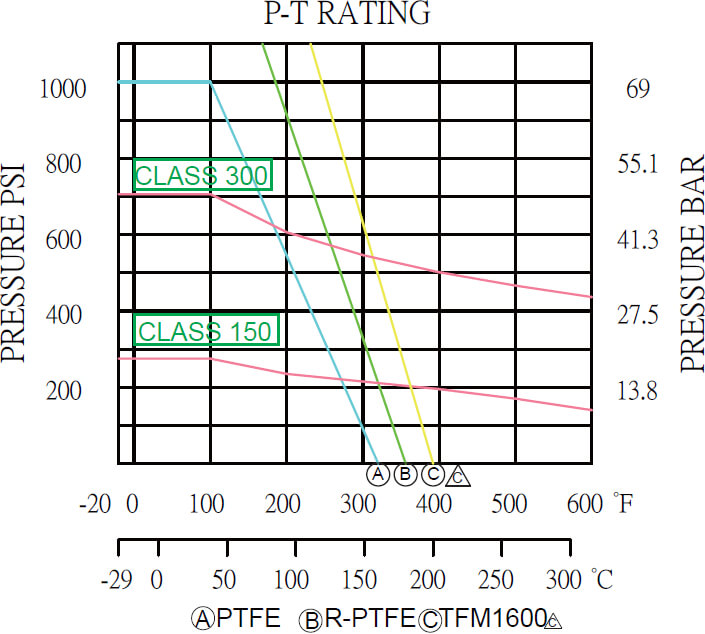

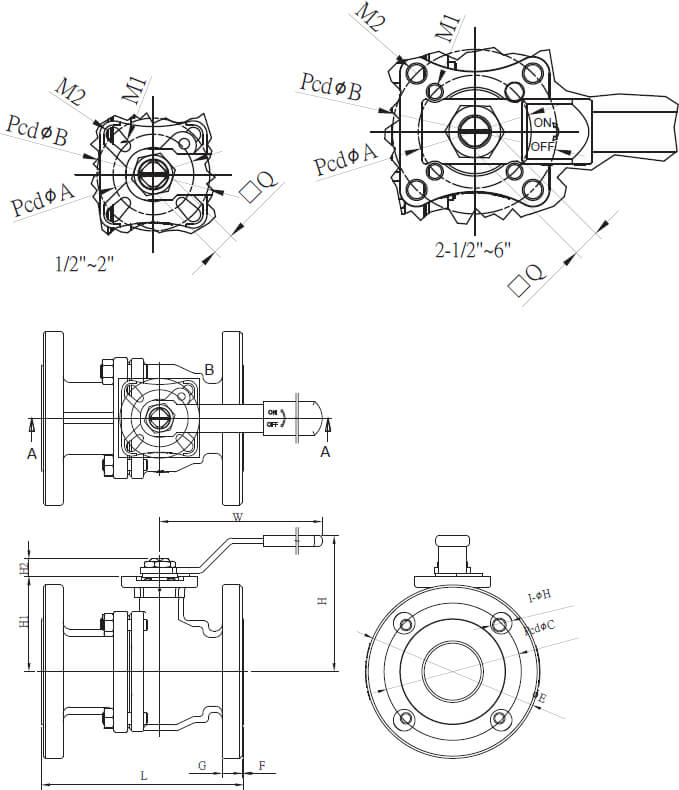

Dimension Table (ANSI 150LBS)

SIZEØdØAØBØCØEFG1-HM1M2QLWHH1H2TTORQUE (Nm)
PTFER-PTFE
1/2"1542-60.5891.69.64-16Ø6-91081659046.510.53.156
3/4"20425070981.611.24-16R3.0R3.591171659651.59.53.7810
1"25425079.51081.612.74-16R3.0R3.5111271659757.510.53.910.512.5
1-1/2"40507098.51271.615.94-16R3.5R4.51416520511176.515.54.92025
2"505070120.5152.41.617.54-19R3.5R4.51417820511883.515.55.52530
2-1/2"6570102139.51781.620.84-19M1OØ1117190280152118.518.55.83845
3"8070102152.5190.51.622.34-19M1OØ1117203280163129.518.56.15870
4"10070102190.52291.622.38-19M1OØ111722938017814518.56.585100
5"125102125215.92551.622.38-22.5R6.0R7.027356610202158.5306.8120150
6"150102125241.32801.623.98-22.5R6.0R7.027394610219175307.1160200

Dimension Table (ANSI 300LBS)

SIZEØdØAØBØCØEFG1-HM1M2QLWHH1H2TTORQUE (Nm)
PTFER-PTFE
1/2"1542-66.7951.612.74-16Ø6-91401659047.5103.556
3/4"20425082.51171.614.34-19R3.0R3.5915216510358.5104810
1"254250891251.615.94-19R3.0R3.51116516510162.5104.210.512.5
1-1/2"405070114.51561.619.14-22R3.5R4.51419020511178145.32025
2"505070127165.11.620.78-19R3.5R4.51421620511883.515.562530
2-1/2"65701021491901.623.48-22.5M1OØ1117241280152118.518.573845
3"80701021682101.6278-22.5M1OØ1117282280163129.518.575870
4"100701022002541.630.28-22.5M1OØ111730538017814518.57.785100
6"150102125269.932033612-22.5R6.0R7.027403610219175307.1160200

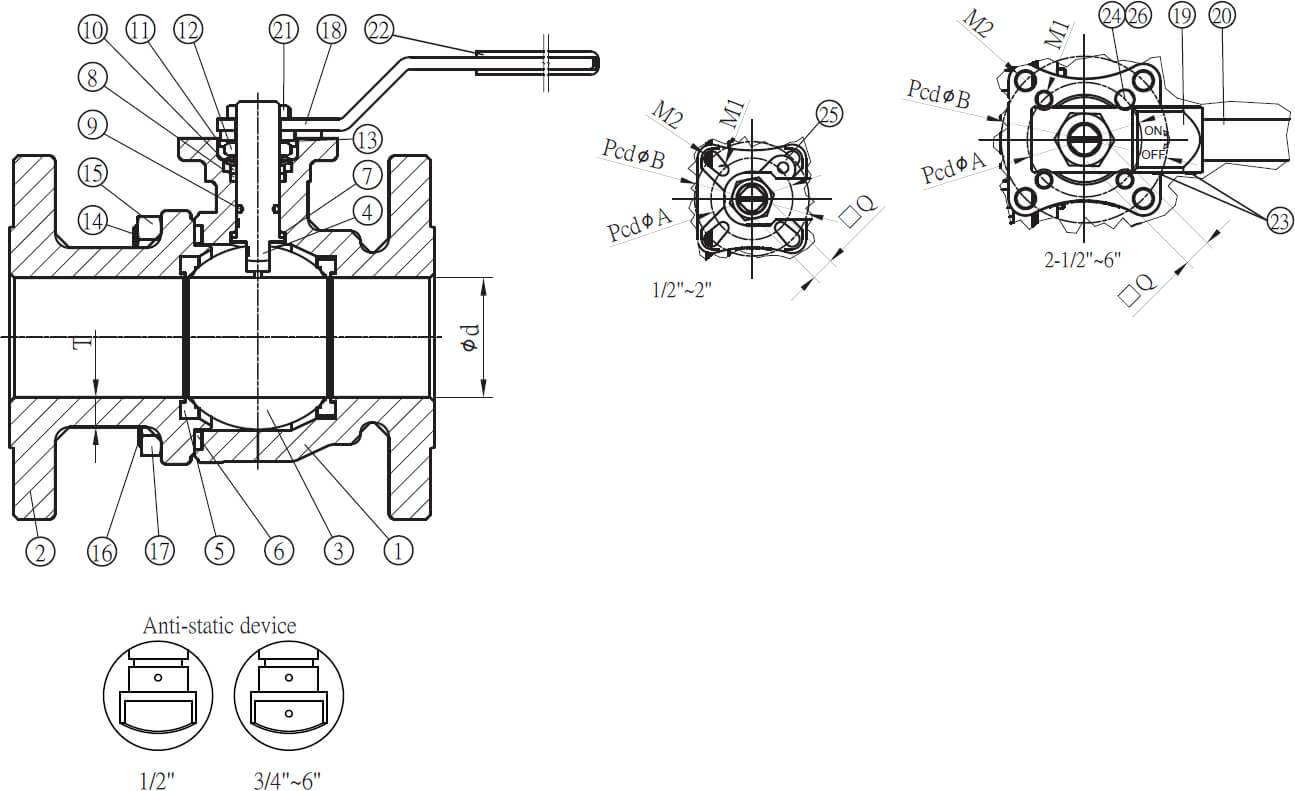

Parts & Materials

No.PartQty.Material
316WCB
1Body1CF8MWCB
2End Cap1CF8MWCB
3Ball1CF8M
4Stem1316
5Seat2PTFE / R-PTFE / TFM1600
6Body Seal1PTFE / R-PTFE / TFM1600 / GRAPHITE*
7Thrust Washer1PTFE / R-PTFE / TFM1600
8Stem Seal2PTFE / R-PTFE / TFM1600 / GRAPHITE*
9O-Ring1~2Viton
10Gland Ring1304
11Disc Spring2301
12Stem Nut1304
13Lock Washer1304
14Body Bolt-11304
15Body Nut-11 (1/2"~4")304
16Body Bolt-23~7304
17Body Nut-23~7(1/2"~4")304
18Handle1(1/2"~2")304
19Handle Adapter1(2-1/2"~6")CF8
20Handle Bar1(2-1/2"~6")304
21Handle Nut1304
22Handle Sleeve1Plastic
23Set Screw2(2-1/2"~6")304
24Stop Pin1(2-1/2"~6")304
25Stopper1(1/2"~2")304
26Nut for Part 241(5"~6")304

Follow our 3-step plan to learn more about the benefits of our Manual Flanged 2-piece Ball Valves:

1

Schedule a call with our team

2

Discuss your requirements

3

Receive tailored solutions for your facility or projects
Get in touch

Frequently Asked Questions

The V111AS and V111PN flanged ball valves are available in ANSI 150 LBS and 300 LBS ratings, ensuring compatibility with standard pipeline systems.

These valves are manufactured in sizes from ½” to 6”, providing flexibility for a wide range of industrial applications.

Standard body materials include stainless steel (CF8M) and carbon steel (WCB), with Hastelloy, Duplex, and Super Duplex available for more demanding environments.

Yes. Each valve features an ISO 5211 direct mounting pad, allowing actuators to be installed directly without additional brackets or adaptors.

The flanged ball valves feature a two-piece body design, full-port construction for maximum flow, blow-out proof stems, anti-static devices, and optional fire-safe designs tested to API 607 — making them safe, durable, and reliable in critical process applications.
